Project Description

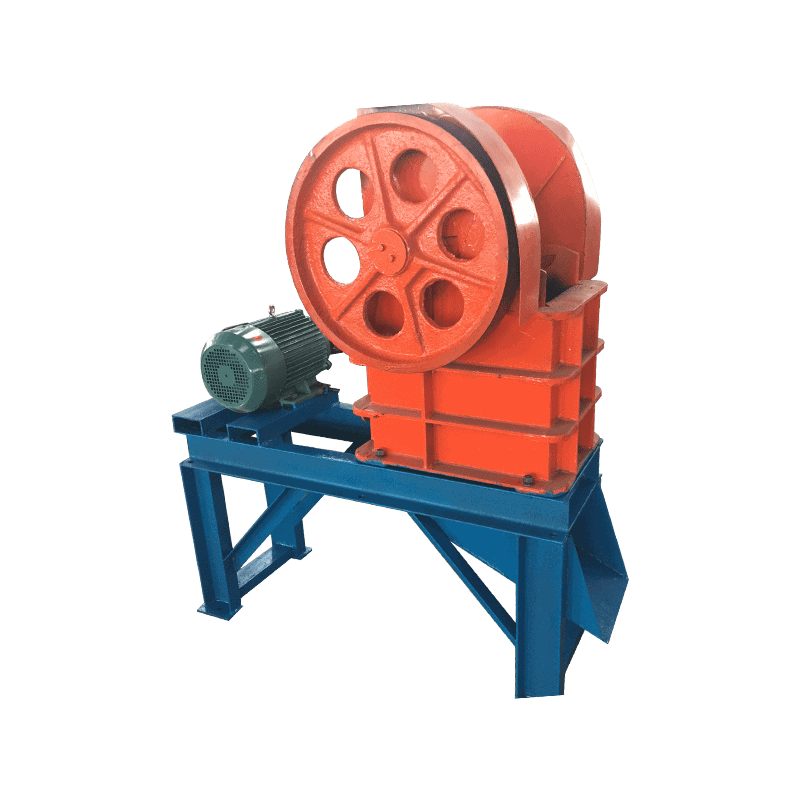

Jaw crusher

Crushing machine, jaw crushers, stone crusher

Jaw Crusher characterized with the high crushing ratio, uniform product size, simple structure, reliable operation, easy maintenance, and low operation cost. It is widely used in many departments such as mine, smelting, building materials, highway, railway, water conservancy and chemical industry and so on, crushing all kinds of material with compression strength less than 350MPa.

  • Greater productivity

  • Easy installation, operation, and maintenance

  • less wearing parts, longer service life

  • 1 year quality warranty, 24 hours customer service

Product Structure

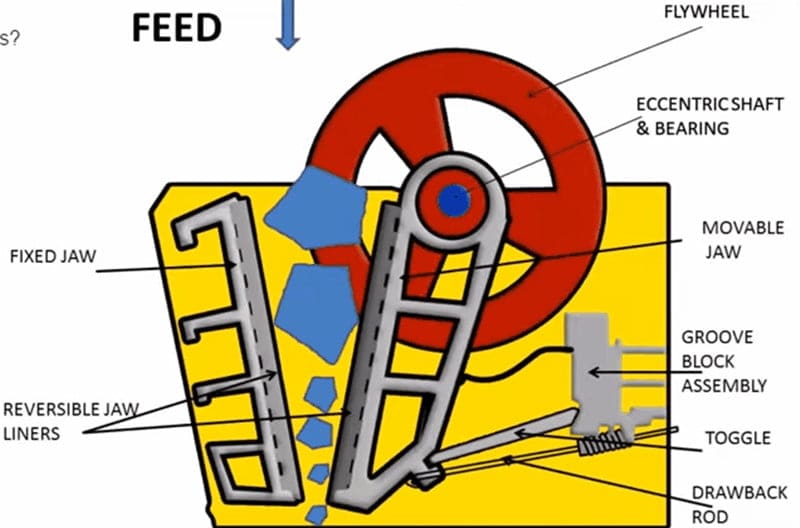

jaw crusher structure


Motor drive belt and pulley, the eccentric shaft causes the movable jaw movement, when the movable jaw rises elbow plate and the movable jaw angle becomes larger, so the movable jaw plate close to the fixed jaw plate, and at the same time the material is crushed, to achieve the purpose of breaking down; when the movable jaw, elbow plate, and the movable jaw angle becomes small, the movable jaw plate in the rod, the spring under the left fixed jaw plate, the broken material from the crushing cavity outlet. With the continuous rotation of the motor, the mobile jaw is broken by periodic motion and crushed and excreted, and mass production is realized.

Technical Parameters

crusher data


Please contact us anytime. We’re happy to provide more information about our products, services, solutions, technical support, and training. You can also call us at +86-18970706487.
